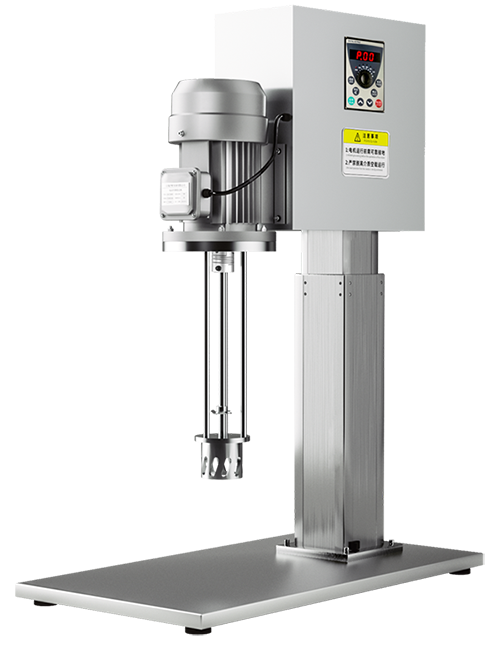

Laboratory Dispersing & Grinding Integrated Machine

Applications

The High-Shear Emulsifier is a high-performance product newly developed by our company in line with the latest international trends in emulsification equipment. This machine integrates the functions of dispersion, mixing, emulsification and homogenization, delivering high efficiency, superior mixing performance and easy cleaning. With simple and convenient lifting mechanism, the machine has been widely used for dispersion, mixing, emulsification and homogenization of materials in liquid phases in factories, research institutions, universities, and medical facilities.
The High-Shear Emulsifier is designed to efficiently, rapidly, and uniformly distribute one or multiple phases into another continuous phase, even when these phases are normally immiscible. Thanks to the high tangential velocity generated by the rotor's high-speed rotation and the intense kinetic energy from high-frequency mechanical effects, immiscible solid, liquid, and gas phases are instantly and finely dispersed and emulsified under optimized processing conditions and with appropriate additives. A stable, high-quality product is ultimately achieved through high-frequency cyclic processing.

Characteristics

●Adopting three-phase asynchronous motor, no spark/dust, higher safety performance, low noise, sufficient power, capable of running for a long time, and easily meeting a variety of high-demand dispersion, mixing semi-production requirements.
●Supporting Dual Voltage Options (220V/380V) to meet different working environments.
●The emulsifying head being finely processed, to run more smoothly and lasting with better discharging effect.
●Adopting three-phase asynchronous motor, capable of handling high viscosity materials and working continuously for a extremely long time.
●The structure base and distribution cabinet being designed with high-quality stainless steel shells, to avoid any difficulty to clear or rustiness caused by contamination of materials during use.

Technical Parameters

Model

HR-750DRH

Series No.

1030027001

Power Supply

220V

Power

750W

Processing Capacity

10L

Max. Speed

10000rpm/min

Speed Control

stepless speed regulation

Emulsifying working head, shaft length

300mm

Diameter of Stator Head

Φ64mm

Lifting System

Electric lifting platform, smooth lifting and lowering

Lifting Travel

300mm

Frequency Control

750w frequency converter

Product Dimensions

420*320*650mm

Packing Measurement

500*350*750mm

Net Weight

30KG

Gross Weight

38KG

Classification of Rotor and Stator

Long holes stator head (Standard): Suitable for rapid crushing of medium solid particles and mixing of medium viscosity liquids. The long holes provide the largest area and good circulation for surface shearing. The diameter of the stator head 10 cm.
Round holes stator head: Suitable for mixing low viscosity liquids. It has the highest shear rate and is most suitable for the preparation of emulsions and the crushing and dissolution of small particles in liquids. The diameter of the stator head 10 cm.
  • Long Holes Stator Head
    Long Holes Stator Head
  • Long Holes Stator Head
    Long Holes Stator Head
