Pressure <18bar, vacuum >0.3bar, material temperature <150℃, for every 1000mPas increase in viscosity, the nominal material flow rate will decrease by 20%, and it must be pumped in when the viscosity is around 3000mPas. Explosion-proof grade is Optional.

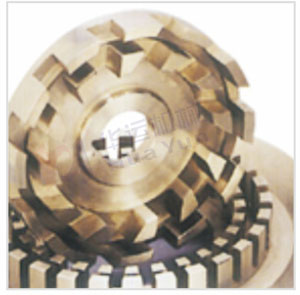

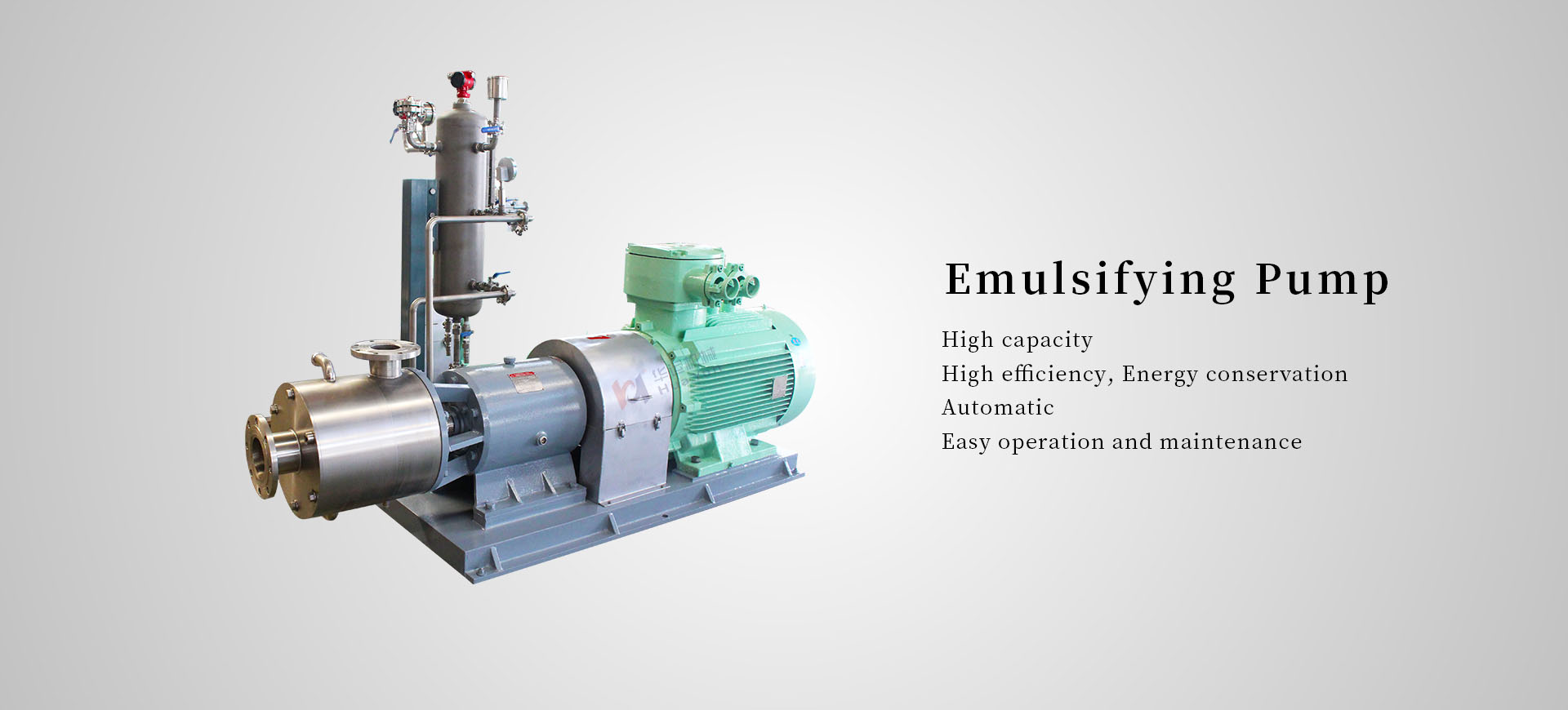

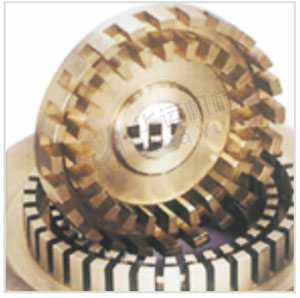

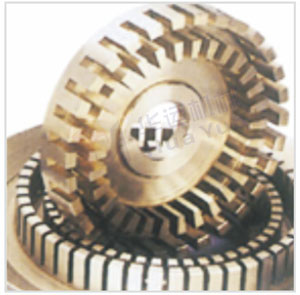

1. The e high shear dispersing emulsifying inline mixer pump is a high-performance equipment used for continuous production or cyclic processing of fine materials. In the narrow space cavity, 1-3 sets of dual-bite multi-layer stators and rotors are installed. When the rotor rotates at high speed, it generates a strong axial suction force to suck the material into the cavity and start rapid processing.
2. After the material enters the equipment cavity, it is quickly dispersed, emulsified, and homogenized by the stator and rotor. The particle size distribution range is also significantly narrowed, and the material is mixed more evenly.

Emulsification (liquid-liquid), suspension (solid-liquid), aerosol (gas-liquid) and homogenization of coatings, paints, foods, coating materials, metal oxide suspensions, oil-in-water and water-in-oil emulsions, accelerating reactions, increasing the yield of active agents, nano-scale chemical products, etc.

1. Large processing capacity, suitable for industrial online continuous production;
2. Narrow particle size distribution range, high uniformity;
3. Time-saving, high efficiency, energy saving;
4. Low noise, stable operation;
5. Eliminate quality differences between batches;
6. No dead angle, 100% of the material is dispersed and sheared;
7. It has short-distance, low-lift conveying function, which can realize circulation processing;
8. Simple operation and convenient maintenance;
9. Automatic control can be realized.

1. Biomedicine
Fat emulsion, vaccine, injection, antibiotic, drug emulsion, drug cream, microcapsule emulsification, cell disruption, tissue homogenate, microsphere, etc.
2. Daily chemical products
Facial cleanser, shower gel, shampoo, cream, skin care lotion, makeup, detergent, soap, daily fragrance, etc.
3. Food industry
Liquid milk, milk beverage, dairy products, tea, juice, ketchup, peanut butter, jam, ice cream, jelly, pudding, chocolate, soy milk, functional beverage, beer, condiments, food additives, etc.
4. Petrochemical industry
Lubricating oil, heavy oil emulsification, diesel emulsification, modified asphalt, emulsified asphalt, water-coal slurry, catalyst, etc.
5. New energy
Lithium battery, lead-acid battery, supercapacitor, photovoltaic cell, etc.
6. Textile auxiliaries
Dye, silicone oil emulsification, paste, leveling agent, fabric finishing agent, brightener, leather auxiliaries, etc.
7. Chemical fiber
Pulp, spandex, aramid, filament, staple, ultrafine fiber, viscose, high-strength fiber, acrylic fiber, etc.
8. Paint and ink
Printing ink, latex paint, architectural paint, nano-coating, light-curing paint, coating additives, carbon black dispersion, automotive paint, glaze, printing ink, ink, bentonite, pigment, insulation material, copper-clad laminate coating, glass fiber impregnation agent, etc.
9. Pesticide
Water emulsion, microemulsion, suspension, microcapsule, emulsifiable concentrate, seed dressing agent, pesticide additive, insecticide, herbicide, fertilizer, etc.
10. Nanomaterials
Dispersion and depolymerization of nanomaterials such as fumed silica, ultrafine titanium dioxide, and ultrafine alumina.
11. Papermaking
Pulping, rosin dispersion, papermaking additives, rosin resin emulsification, paraffin emulsification, etc.
12. Fine Chemicals
Plastic additives, seasoning dispersions, adhesives, resin emulsification, modified plastics, hot melt adhesives, sealants, glues, surfactants, carbon black dispersions, anti-adhesives, mold release agents, fluorine cleaning agents, pigment pastes, bactericides, flocculants, coagulants, silicon cleaning agents, lighting materials, etc.
13. Reaction, extraction
Online reaction, micro-reaction, online extraction, polymer synthesis, polymerization reaction, ultrapure reaction, solid-liquid reaction, gas-liquid reaction, multiphase reaction, etc.

H		II		C		405-		4
Company Code		Continuous style		Product series		Product model		Drive power

（Note: Product series : C Single-stage six-layer horizontal type D Two-stage six-layer with bracket type E Three-stage six-layer with bracket type）
