The dispersing device of HYSM disc bead mill is composed of a main shaft, a dispersing disc, a reflecting cage and a bushing. During operation, the mechanical energy generated by the rotation of the dispersing disc is transmitted to the grinding medium through the rotation of the main shaft, so that the materials ground and dispersed uniformly. A reflective cage is arranged at the front end of the main shaft to prevent the grinding medium from collecting at the discharge screen and causing wear on the screen.
Huayun disc bead mill has a wide range of applications, and the grinding fineness can reach below 5 microns.

Model		Chamber Volume(L)		Power(KW)		Spindle Speed (r/min)		Media Loading(L)		Weight(Kg)		Dimensions(mm)
HYSM10		10		11		1200		7-7.5		580		1350*1280*850
HYSM15		15		15		1200		10.5-11.5		600		1350*1280*850
HYSM20		20		18.5		1200		14-15		650		1450*1280*850
HYSM30		30		22		1100		21-22.5		1200		1570*1200*1390
HYSM40		40		30		1100		28-30		1270		1740*1200*1390
HYSM50		50		37		900		35-37.5		1350		1790*1220*1530
HYSM60		60		37		900		42-45		1400		1890*1220*1530
HYSM80		80		45		700		56-60		1900		1890*1300*1690
HYSM100		100		55		700		70-75		2100		2010*1500*1690
HYSM120		120		55		700		84-90		2500		2100*1500*1690
HYSM150		150		75		650		105-112.5		3200		2200*1650*1750
HYSM200		200		90		500		140-150		3500		2260*1650*1750
HYSM300		300		110		450		210-225		4200		2500*1700*1800

(Note: Inverter with control cabinet suggested , if motor power is 30kw and above.Frequency conversion starts makes currency more stable,and machine will work in the most reasonable condition.)

1. Compact structure, easy to operate;
2. More advanced screen ensures high efficiency without blocking.
3. Wear-resistance milling tank, and different type for option.
4. Jacket type milling tank and double cooling system, ensure whole process under same temperature range.
5. Anti-explosion and PLC are optional.
6. Pressure and temperature are under control.

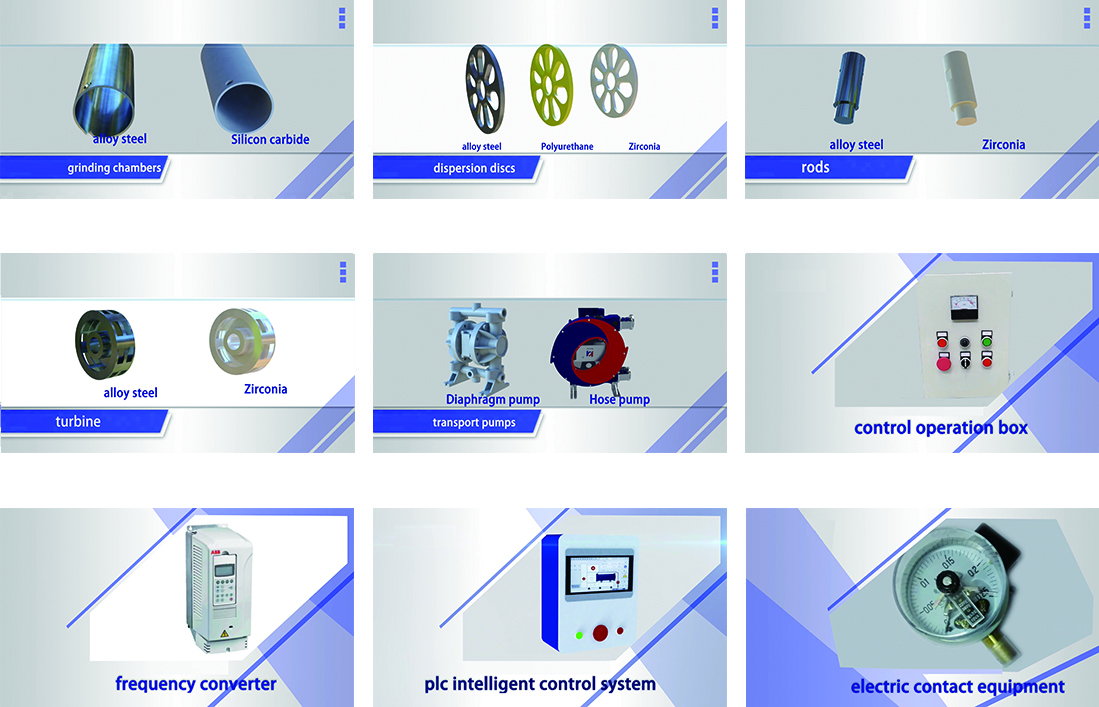

Standard■/Optional◎
Grinding Chamber Material		304		◎
		A3		■
Grinding Chamber Liner Material		Polyurethane		◎
		Silicon Carbide		◎
		Alloy Steel		■
		304		◎
		Zirconium oxide		◎
Feed Pump		Diaphragm Pump		■
		Hose Pump		◎
Electric Appliances		Full Explosion-proof		◎
		Standard		■
Control		PLC		◎
		Electric Control Cabinet		■
Pressure Gauge / Thermometer		Electrical Contact		◎
		Standard		■
