Bead mill、Emulsification pump、Emulsifying homogenizer、Disperser、New material equipment

Capacity: capable for above 5000m³ volume device

Pressure: capable for above 1000Mpa(G) volume pressure

Power: capable to supply above 1000KW mixer

Length of shaft: Max.35m

Impeller Dia.: Max.12m

Material: the mixer is made of various of metal materials including carbon steel, SS304, SS316, hastelloy, titanium alloy,

etc , on which rubber / plastic layers can be added.

Seal: Various seals for users to choose such as hydraulic seal, packing seal, single /double mechanical seal, nitrogen

backpressure seal, temperature circulation system seal.

Motor: various explosive and non-explosive motors

Installation: available for vertical (top and bottom), horizontal installation.

The designed and manufactured mixer products can be used in medium and smaller mixing process, Max. capacity is

suitable for 700m³ vessel.

The professional designed mixer to meet various process and processing capacity requirements.

Homogeneous mixing/ Liquid-liquid dispersion / Solid-liquid suspension / Decomposition of gas and liquid / Solid dissolution / Crystal

•

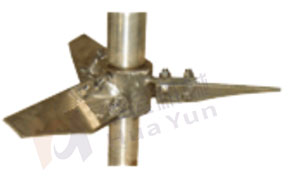

  Pusher mixing impeller
  Typical axial flow impeller, suitable for mixing, heat transferring, recycle, solid suspension, decomposition, etc of low viscosity materials.
•
  Pusher mixing impeller with stable ring
  Stabilized the performance for high speed operation
•
  Curved axial flow impeller
  To get the biggest flow for same power. suitable for mixing, heat transferring, recycle, solid suspension, decomposition, etc of low viscosity materials.
•
  High efficiency wide axial flow impeller
  with wider impeller, gas-liquid contact time can be prolonged and the gas-liquid contact time will be improved, the optimized curved surface reduces the shear effect and increases the displacement. Suitable for gas-liquid transmissionreaction and solid suspension, etc.
•
  The six-fold open turbine impeller
  Axial flow impeller, suitable for mixing, heat transferring, recycle, solid suspension, decomposition, etc of low viscosity materials.
•
  The four-fold open turbine impeller
  Traditional impeller, for both of recycle and shear, suitable for mixing , hear transfer, recycle reaction ,etc of medium and low viscosity fluid.
•
  Six disc turbine impeller
  Typical radial shear impeller, suitable for mixing ,extraction, emulsifying, solid suspension , dissolution, bubble dispersion, absorb ,etc of medium and low viscosity fluid.
•
  Six lean disk turbine impeller
  Similar to DT601, Strengthening axial circulation capacity, reducing shear capacity.
•
  Six bend disk turbine impeller
  Run off impeller, suitable for dispersion, recycle, crystal, solid dissolution, reaction etc of medium and low viscosity materials.
•
  Six hollow disk turbine impeller
  Run off impeller, Suitable for the dispersion of large amount of gas in liquid, the gas processing capacity is stronger than DT601.And the energy consumption is reduced by 50%.
•
  Three-leaf sweep impeller
  Axial flow impeller, suitable for mixing ,heat transfer, recycle, crystal , solid dissolution, reaction ,etc of medium and low viscosity fluid.
•
  Ribbon- Screw impeller
  Axial flow impeller, suitable for high viscosity and high solid content material ‘s mixing , heat transfer, reaction.

· Fermentation · Alumina · Metallurgy · Phosphoric acid and phosphate fertilizer · Titanium dioxide · Sugar production · Gypsum · Flue gas desulphurization · Petrochemical · Thermal power · Catalyst · Chemical industry · Mineral processing · Water treatment
