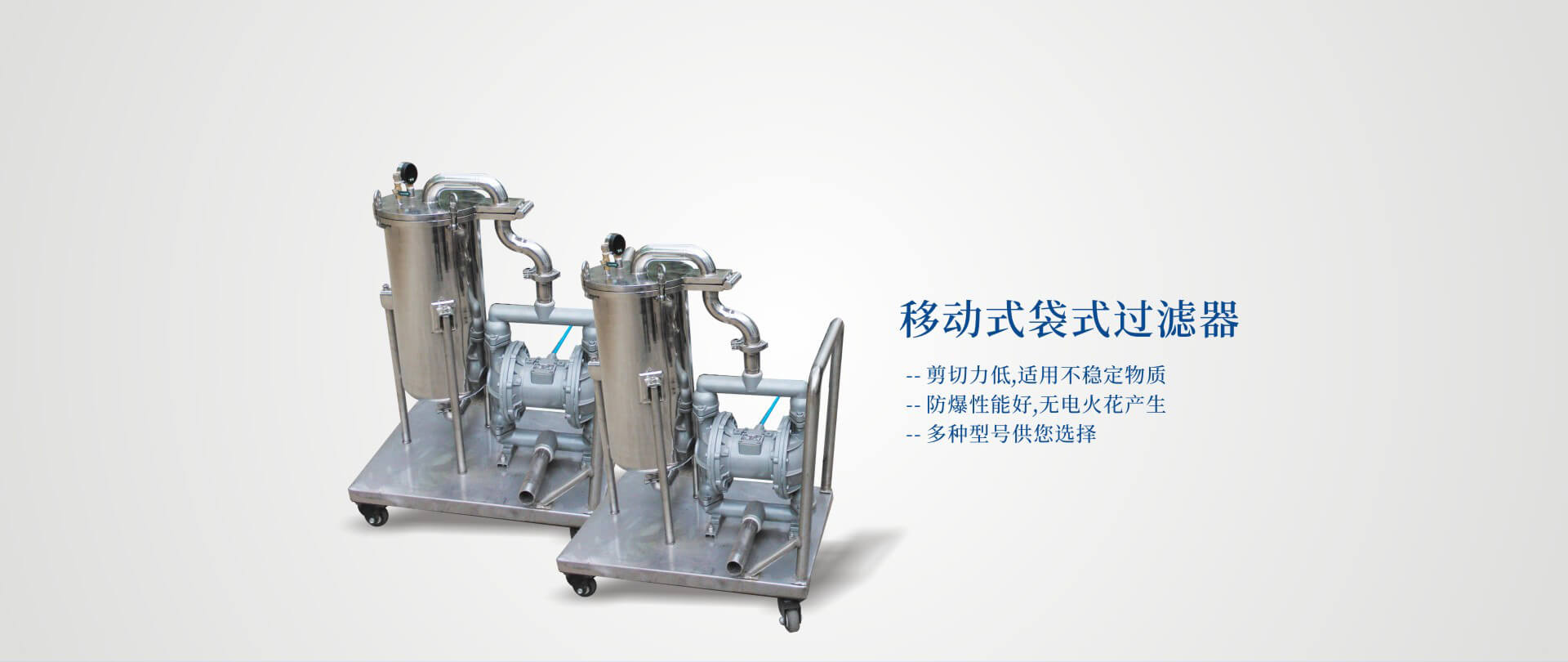

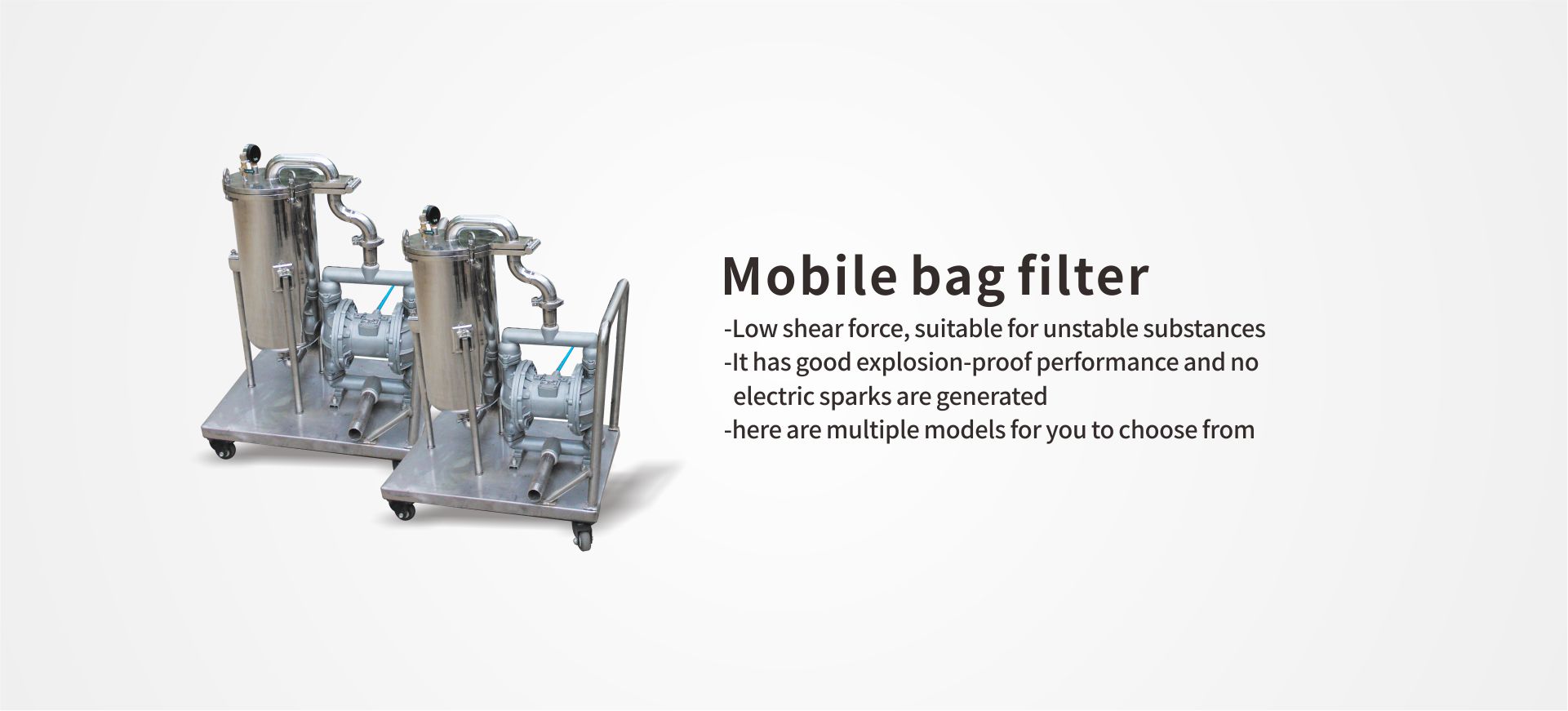

The bag filter is a simple, efficient and economical filtering equipment. It includes a filter housing, a mesh basket and a filter bag. The operation is simple and convenient. The fluid to be filtered enters the filter bag from the top, and the impurities are blocked in the bag, so that a clean fluid is obtained. The bag filter has been widely used in complete sets of equipment with a filtering accuracy of 1-1000um. This mobile bag filter device is installed on a trolley and can be moved to any production line at will for work. It is also suitable for traditional equipment. When used with a filling machine, it can form a filtering and filling production line that is completely under automatic control. The shear force is extremely low, which is suitable for unstable substances; compressed air is used as a power source, which is suitable for medium and high viscosity materials; it has good explosion-proof performance and no electric sparks are generated. A safe and efficient filtering effect is achieved. We have a variety of models to meet your filtering requirements.

Model No.	HGL-25
Filter Area(m³)	0.25
Maximum flow rate of diaphragm pump water(m³/h)	12
Higher Operation Pressure(Mpa)	0.6
Higher Operation Temp(°C)	120
Standard Inlet and Outlet	DN25
Container Material	SS304
Locking Device	Quick installation galvanized bell type ring head bolt
Sealing Gasket Material	O-ring (fluororubber)

Coatings, paints, resins, inks, fine chemicals, petrochemicals, pharmaceuticals, chemicals, cosmetics, textiles, photosensitive chemicals, hot solvents, industrial water, various electroplating solutions, milk, mineral water, juice, vegetable oil and other media.
