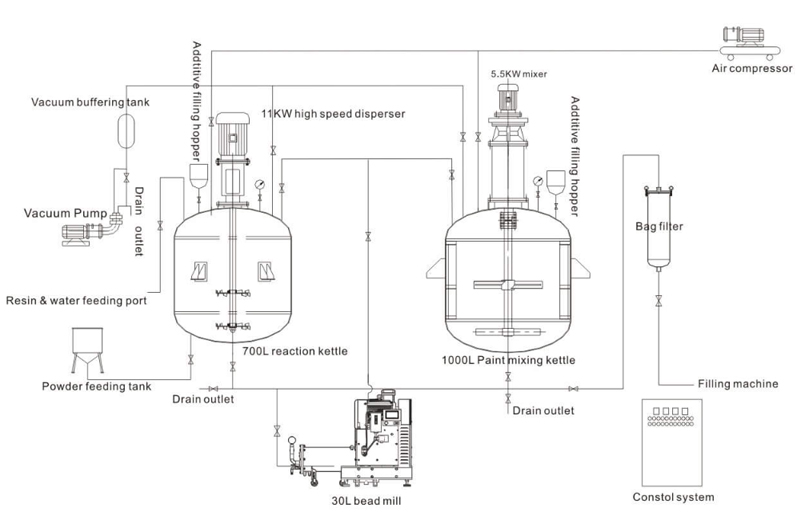

Process flowchart(Standard configuration)



Equipment List (Standard configuration)
No.DescriptionMaterialQtyUnitRemark
1Reaction kettleStainless Steel1台700L、vacuum
2Paint mixing kettleStainless Steel1台1000L、vacuum
3High speed disperserCombination unit1台11KW
4InverterCombination unit1台11KW
5MixerCombination unit1台5.5KW
6Bead millCombination unit1台30L
7Vacuum PumpCombination unit1台Water ring type
8Vacuum buffering tankStainless Steel1台10L with filtering device
9Air compressorCombination unit1台
10Additive feeding hopperStainless Steel2台1 pc 5L, 1 pc 10L
11Pipeline systemStainless Steel1套Quick coupler
12Operation platformCombination unit1台Aluminium alloy table
13Control cabinetCombination unit1套
14Bag filterStainless Steel1套With 2 bag filter free
15Powder feeding tankStainless Steel1只

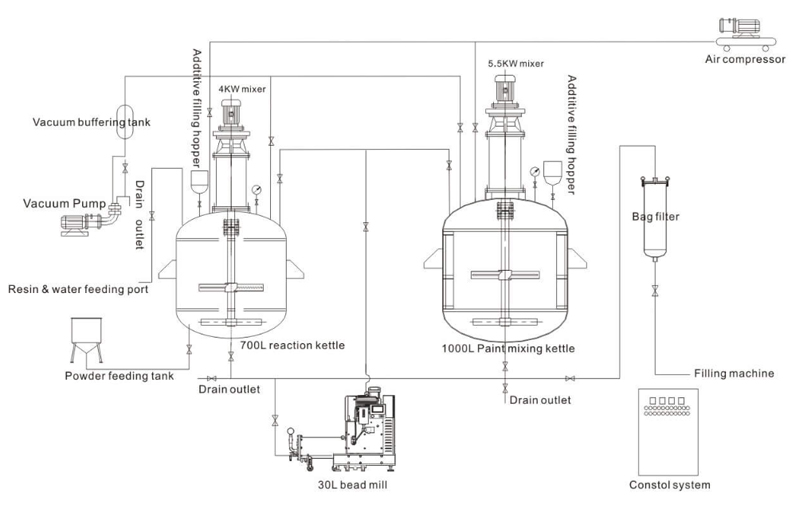

Process flowchart(Double mixer)



Equipment List (Double mixer)
No.DescriptionMaterialQtyUnitRemark
1Reaction kettleStainless Steel1台700L、vacuum
2Paint mixing kettleStainless Steel1台1000L、vacuum
3MixerCombination unit1台4KW
4MixerCombination unit1台5.5KW
5Bead millCombination unit1台30L
6Vacuum PumpCombination unit1台Water ring type
7Vacuum buffering tankStainless Steel1台10L with filtering device
8Air compressorCombination unit1台
9Additive feeding hopperStainless Steel2台1 pc 5L, 1 pc 10L
10Pipeline systemStainless Steel1套Quick coupler
11Operation platformCombination unit1台Aluminium alloy table
12Control cabinetCombination unit1套
13Bag filterStainless Steel1套With 2 bag filter free
14Powder feeding tankStainless Steel1只
